Cross Compiling tcpdump for Cisco SPA112/122/232D.
This is one "blog post" in a series of blog posts about developing an exploit, and post-exploitation toolkit, for a number of Cisco devices. These are notes written while solving the problems, so its pretty rough work. I might clean 'em up before publishing, or I might not.
I'll be speaking about this work at BSides Basingstoke, this blog post is part of the series of "supporting documents" published automatically before the event.
One of the tools I needed on-target was tcpdump. These devices claim to be armv5l, so we need to cross compile it to run. This is often a pain in the arse.
We want tcpdump on these targets because in some circumstances, they are "upstream" of user workstations (acting as a router), and having a upstream packet capture capability is cool as fuck.
# cat /proc/cpuinfo
Processor : ARM926EJ-S rev 5 (v5l)
<snip>Here are my notes on cross compiling it. Includes the mistakes I made, and how I solved them.
First, make a working directory and cd into it.
mkdir tcpdump_cross
cd tcpdump_crossNext, we grab the uclibc compilers, tcpdump source code, and libpcap source. You also need to install "flex" and "bison" using your package manager.
I chose an older libpcap for some reason, newer ones had issues compiling...
wget https://www.tcpdump.org/release/tcpdump-4.99.4.tar.gz
wget https://www.tcpdump.org/release/libpcap-1.3.0.tar.gz
wget https://uclibc.org/downloads/binaries/0.9.30.1/cross-compiler-armv5l.tar.bz2Unpack these.
tar -xf tcpdump-4.99.4.tar.gz
tar -xf libpcap-1.3.0.tar.gz
tar -xf cross-compiler-armv5l.tar.bz2 Now, we cd into libpcap and try run configure. It took me some trial and error to work this shit out.
CC=$HOME/tcpdump_cross/cross-compiler-armv5l/bin/armv5l-gcc ./configure --host=arm-linux-gnueabi --with-pcap=linux
This worked. So we try run 'make', and it seems to work. I think.
We now go into the tcpdump directory and do the whole mess all over again.
cd ../tcpdump-4.99.4
CC=$HOME/tcpdump_cross/cross-compiler-armv5l/bin/armv5l-gcc CFLAGS="-static" ./configure --host=arm-linux-gnueabi
makeWe now have a tcpdump binary.
$ ls -lah tcpdump
-rwxr-xr-x 1 user user 2.0M Jun 22 10:46 tcpdump
$ file tcpdump
tcpdump: ELF 32-bit LSB executable, ARM, version 1 (ARM), statically linked, with debug_info, not stripped
Now we try debiggen it a little.
~/tcpdump_cross/cross-compiler-armv5l/bin/armv5l-strip ./tcpdumpThis cuts 500kb off the size, but its still big... So we recompile.
CC=$HOME/tcpdump_cross/cross-compiler-armv5l/bin/armv5l-gcc CFLAGS="-static -Os" ./configure --host=arm-linux-gnueabi
make
~/tcpdump_cross/cross-compiler-armv5l/bin/armv5l-strip ./tcpdump
This gets us down to 1.1mb, UPX gets us down to just under 500kb, which I can live with for now. We probably can further optimise, but thats a matter for another blog entry I think. Now we have to check the fucking thing works on target.
# ./tcpdump -h
tcpdump version 4.99.4
libpcap version 1.3.0
Usage: tcpdump [-AbdDefhHIJKlLnNOpqStuUvxX#] [ -B size ] [ -c count ] [--count]
[ -C file_size ] [ -E algo:secret ] [ -F file ] [ -G seconds ]
[ -i interface ] [ -j tstamptype ]
[ -M secret ] [ --number ] [ --print ] [ -Q in|out|inout ]
[ -r file ] [ -s snaplen ] [ -T type ] [ --version ]
[ -V file ] [ -w file ] [ -W filecount ] [ -y datalinktype ]
[ -z postrotate-command ] [ -Z user ] [ expression ]
# ./tcpdump
Illegal instruction
#
Fuck.
After some thought, I wondered if trying the armv4l compiler would work better, so we recompile libpcap...
wget https://uclibc.org/downloads/binaries/0.9.30.1/cross-compiler-armv4l.tar.bz2
tar -xf cross-compiler-armv4l.tar.bz2
(cd to libpcap....)
libpcap-1.3.0$ CC=$HOME/tcpdump_cross/cross-compiler-armv4l/bin/armv4l-gcc CFLAGS='-static -Os' ./configure --host=arm-linux-gnueabi --with-pcap=linux
makeNow we recompile tcpdump...
tcpdump-4.99.4$ CC=$HOME/tcpdump_cross/cross-compiler-armv4l/bin/armv4l-gcc CFLAGS='-static -Os' ./configure --host=arm-linux-gnueabi;makeAnd we test this binary on target.
It works!
# ./tcpdump -h
tcpdump version 4.99.4
libpcap version 1.3.0
Usage: tcpdump [-AbdDefhHIJKlLnNOpqStuUvxX#] [ -B size ] [ -c count ] [--count]
[ -C file_size ] [ -E algo:secret ] [ -F file ] [ -G seconds ]
[ -i interface ] [ -j tstamptype ]
[ -M secret ] [ --number ] [ --print ] [ -Q in|out|inout ]
[ -r file ] [ -s snaplen ] [ -T type ] [ --version ]
[ -V file ] [ -w file ] [ -W filecount ] [ -y datalinktype ]
[ -z postrotate-command ] [ -Z user ] [ expression ]
# ./tcpdump -i br0
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on br0, link-type EN10MB (Ethernet), snapshot length 65535 bytes
02:10:47.057948 IP 192.168.0.150.23000 > 192.168.0.54.59996: Flags [P.], seq 3505544835:3505544842, ack 116819468, win 2896, options [nop,nop,TS val 171120 ecr 2833405978], length 7
02:10:47.061658 IP 192.168.0.54.59996 > 192.168.0.150.23000: Flags [.], ack 7, win 2047, options [nop,nop,TS val 2833406102 ecr 171120], length 0Ok, now lets try make the binary smaller by stripping.
$ ls -lah tcpdump
-rwxr-xr-x 1 user user 1.2M Jun 22 11:09 tcpdump
$ ~/tcpdump_cross/cross-compiler-armv4l/bin/armv4l-strip ./tcpdump
$ ls -lah tcpdump
-rwxr-xr-x 1 user user 1.1M Jun 22 11:12 tcpdump
This bin works on target, but its still pretty big, we try UPX.
$ upx -9 tcpdump
Ultimate Packer for eXecutables
Copyright (C) 1996 - 2020
UPX 3.96 Markus Oberhumer, Laszlo Molnar & John Reiser Jan 23rd 2020
File size Ratio Format Name
-------------------- ------ ----------- -----------
1049452 -> 456452 43.49% linux/arm tcpdump
Packed 1 file.
$ ls -lah tcpdump
-rwxr-xr-x 1 user user 446K Jun 22 11:12 tcpdump

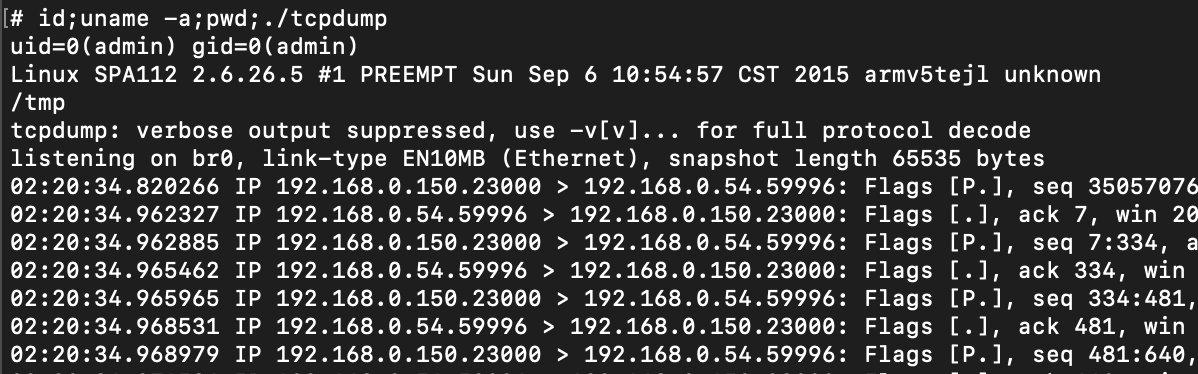

And it works on our target!
# ls -lah tcpdump
-rwxr-xr-x 1 admin admin 445.8k Jun 22 02:14 tcpdump
# ./tcpdump
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on br0, link-type EN10MB (Ethernet), snapshot length 65535 bytes
02:14:53.684913 IP 192.168.0.150.23000 > 192.168.0.54.59996: Flags [P.], seq 3505678683:3505678690, ack 116820134, win 2896, options [nop,nop,TS val 232777 ecr 2833652385], length 7
02:14:53.873981 IP 192.168.0.54.59996 > 192.168.0.150.23000: Flags [.], ack 7, win 2047, options [nop,nop,TS val 2833652916 ecr 232777], length 0
So we have now achieved one of our goals for our "on target toolkit": a packet sniffer.
I guess the next step is to write a Dockerfile or a script that just emits the binary, but that is a problem for later me.
A future blog post will cover operational use of tcpdump on embedded device targets for surveillance of networks.
